Cornell Dubilier Electronics (CDE)
CAP ALUM 15000UF 20% 35V SNAP

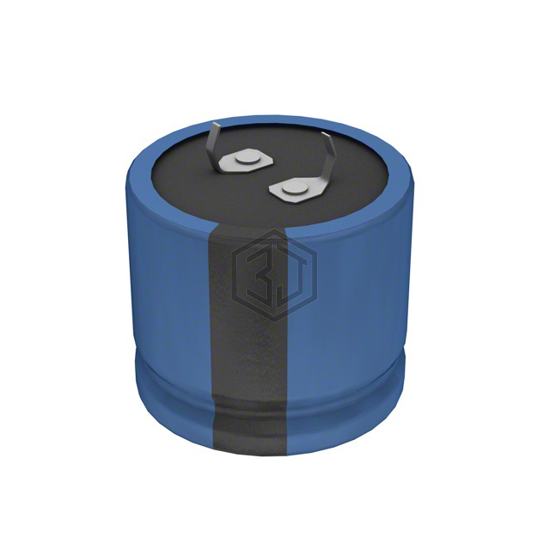

380LX153M035A022 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 15000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 7,645
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 36mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.4 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205147153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 40V RADIAL | 95% | View |
| MAL205877153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 40V SNAP | 92% | View |
| LP153M035H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 35V SNAP | 89% | View |
| ESMH350VSN153MR40U | United Chemi-Con | CAP ALUM 15000UF 20% 35V SNAP | 88% | View |
| EKMH350VNN153MR45S | United Chemi-Con | CAP ALUM 15000UF 20% 35V SNAP | 79% | View |
| 25USC15000MEFC25X35 | Rubycon | CAP ALUM 15000UF 20% 25V SNAP | 75% | View |
