Cornell Dubilier Electronics (CDE)
CAP ALUM 150UF 20% 200V SNAP

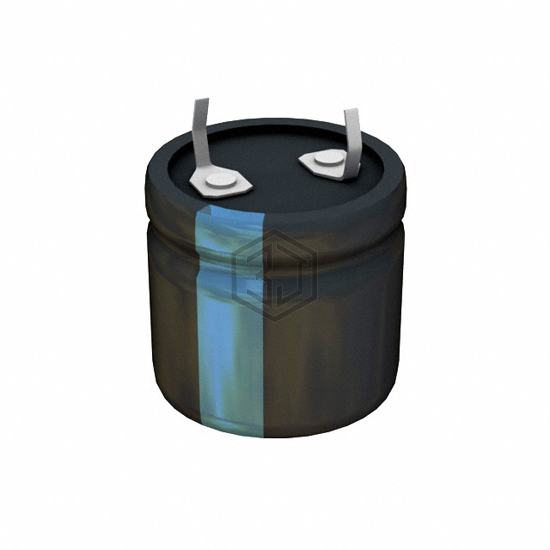

380LX151M200H202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 150UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,711
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 1.33Ohm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX151M200H202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2D151MHD1TN | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 88% | View |
| B43501C2157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 250V SNAP | 80% | View |
| 381LX151M315H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 315V SNAP | 74% | View |
| B43504A9157M67 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 64% | View |
| 420HXW150MEFR18X30 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 60% | View |
| B43642C5157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 58% | View |
Submit your RFQ for 380LX151M200H202 and get a quote within 24 hours.
