Cornell Dubilier Electronics (CDE)
CAP ALUM 100UF 20% 500V SNAP

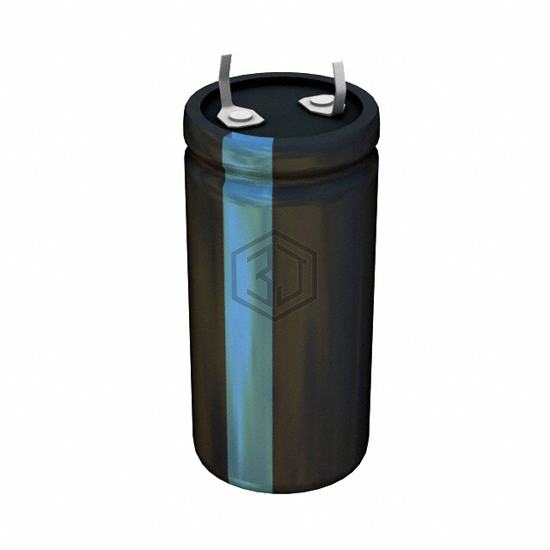

380LX101M500H452 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 8,427
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 1.658Ohm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 990 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.39 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX101M500H452 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501C5107M62 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 93% | View |
| B43501C5107M82 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 93% | View |
| 400TXW100MEFR16X30 | Rubycon | CAP ALUM 100UF 20% 400V RAD TH | 86% | View |
| B43504C5107M002 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 83% | View |
| EKXJ401ELL101MU45S | United Chemi-Con | CAP ALUM 100UF 20% 400V RADIAL | 82% | View |
| B43505A9107M87 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 400V SNAP | 80% | View |
Submit your RFQ for 380LX101M500H452 and get a quote within 24 hours.
