Cornell Dubilier Electronics (CDE)
CAP ALUM 100UF 20% 500V SNAP

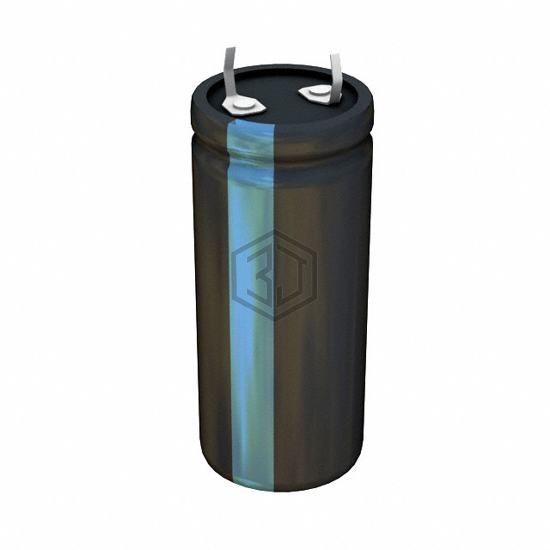

380LX101M500H052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 5,055
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 1.28Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43540A5107M60 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 95% | View |
| B43305A5107M62 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 90% | View |
| ESMM401VSN101MN30U | United Chemi-Con | CAP ALUM 100UF 20% 400V SNAP | 89% | View |
| B43505C5107M002 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 87% | View |
| B43501B9107M002 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 400V SNAP | 84% | View |
| B43508B5107M80 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 83% | View |
