Cornell Dubilier Electronics (CDE)

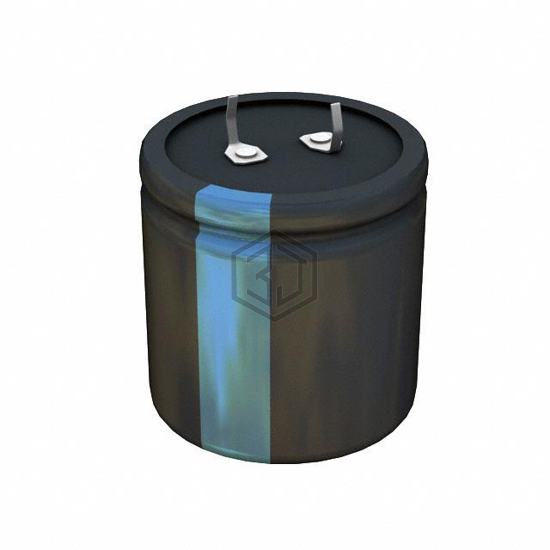

CAP ALUM 680UF 20% 315V SNAP
380LQ681M315A032 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 7,101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 293mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.87 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.55 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305F2687M002 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 85% | View |
| B43508B9687M67 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 80% | View |
| B43540A9687M80 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 79% | View |
| B43540C2687M7 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 78% | View |
| B41789K7687Q001 | EPCOS - TDK Electronics | CAP ALUM 680UF 40V RADIAL | 70% | View |
| THAS691M100AD1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 690UF 20% 100V FLATPACK | 56% | View |
