Cornell Dubilier Electronics (CDE)
CAP ALUM 560UF 20% 420V SNAP

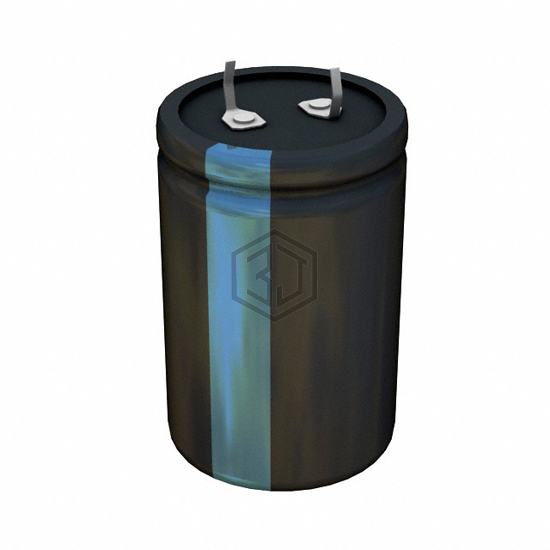

380LQ561M420K452 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,046
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.75 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.85 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMR421VSN561MA35S | United Chemi-Con | CAP ALUM 560UF 20% 420V SNAP | 99% | View |
| ALC10A561DF450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 92% | View |
| ESMQ351VSN561MA30S | United Chemi-Con | CAP ALUM 560UF 20% 350V SNAP | 92% | View |
| 400MXG560MEFCSN30X50 | Rubycon | CAP ALUM 560UF 20% 400V SNAP | 90% | View |
| B43508A9567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 87% | View |
| 400MXK560MEFCSN30X40 | Rubycon | CAP ALUM 560UF 20% 400V SNAP | 86% | View |
Submit your RFQ for 380LQ561M420K452 and get a quote within 24 hours.
