Cornell Dubilier Electronics (CDE)

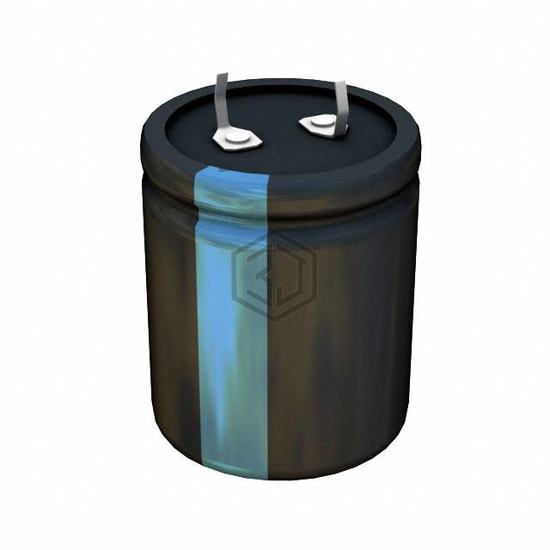

CAP ALUM 560UF 20% 315V SNAP
380LQ561M315K032 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 1,123
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.58 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLPX561M220C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 220V SNAP | 87% | View |
| ALC70D561DD350 | KEMET | CAP ALUM 560UF 20% 350V SNAP | 84% | View |
| B43644A5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 83% | View |
| MAL229957561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 450V SNAP | 81% | View |
| ALC70C561DF450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 73% | View |
| LGN2E561MELB30 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 69% | View |
Submit your RFQ for 380LQ561M315K032 and get a quote within 24 hours.
