Cornell Dubilier Electronics (CDE)

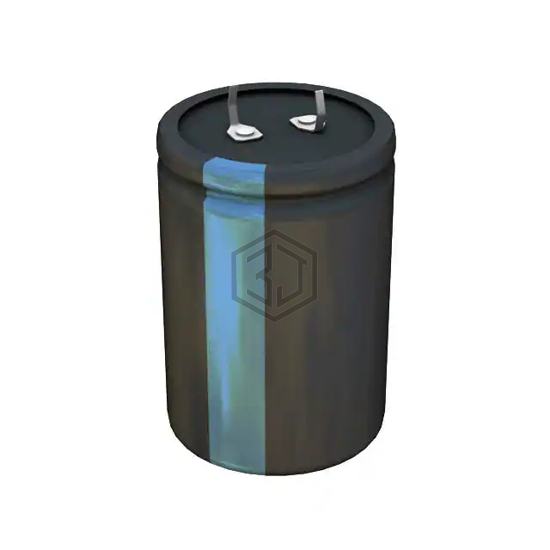

CAP ALUM 47000UF 20% 35V SNAP
380LQ473M035A052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 9,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 17mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.84 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205157473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 40V RADIAL | 88% | View |
| ALC80C473EL040 | KEMET | CAP ALUM 47000UF 20% 40V SNAP | 76% | View |
| 25MXG47000MEFCSN35X50 | Rubycon | CAP ALUM 47000UF 20% 25V SNAP | 75% | View |
| SLPX473M010C9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 10V SNAP | 62% | View |
| MAL205854473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 10V SNAP | 61% | View |
| MAL205144473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 10V RADIAL | 59% | View |
