Cornell Dubilier Electronics (CDE)

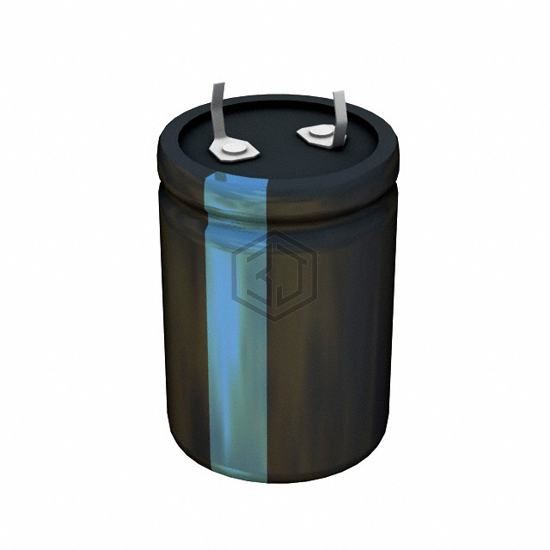

CAP ALUM 390UF 20% 315V SNAP
380LQ391M315J032 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 390UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 2,088
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 510mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.01 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.81 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LQ391M315J032 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305A9397M60 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 88% | View |
| B43652C5397M050 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 83% | View |
| B43305B5397M87 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 82% | View |
| ELHS4H1VSN391MA40S | United Chemi-Con | CAP ALUM 390UF 20% 475V SNAP | 80% | View |
| B43540B2397M7 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 79% | View |
| B43508B9397M87 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 79% | View |
Submit your RFQ for 380LQ391M315J032 and get a quote within 24 hours.
