Cornell Dubilier Electronics (CDE)
CAP ALUM 1500UF 20% 80V SNAP

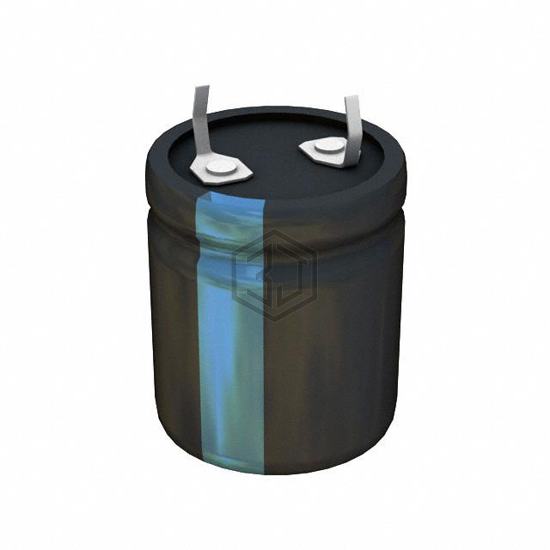

380LQ152M080H012 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1500UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 1,947
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 221mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LQ152M080H012 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKS2A152MESY | Nichicon | CAP ALUM 1500UF 20% 100V SNAP | 88% | View |
| EKMH101VSN152MQ30S | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 86% | View |
| 158CKS050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 50V RADIAL | 75% | View |
| B41858C7158M9 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 35V RADIAL | 70% | View |
| EKY-160ELL152MK20S | United Chemi-Con | CAP ALUM 1500UF 20% 16V RADIAL | 55% | View |
| LKG1E152MESYCK | Nichicon | CAP ALUM 1500UF 20% 25V SNAP | 53% | View |
Submit your RFQ for 380LQ152M080H012 and get a quote within 24 hours.
