Cornell Dubilier Electronics (CDE)
CAP ALUM 100000UF 20% 16V SNAP

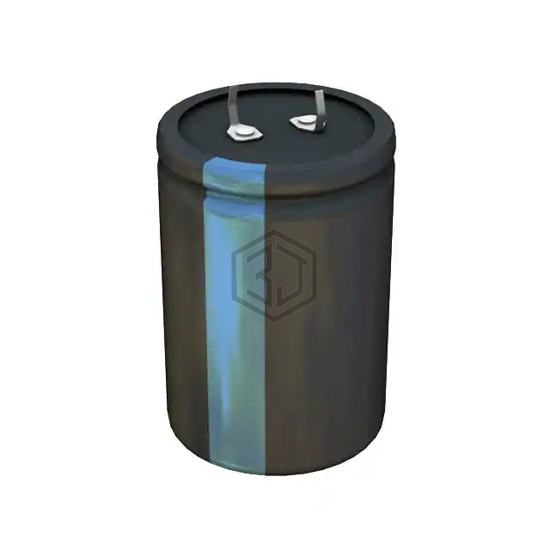

380LQ104M016A052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 4,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.18 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.71 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 382LX104M016A082 | Cornell Dubilier Electronics (CDE) | CAP ALUM 100000UF 20% 16V SNAP | 100% | View |
| MALIEYN07DF610D42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100000UF 20% 16V SNAP | 100% | View |
| 383LL104M016N062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 100000UF 20% 16V SNAP | 94% | View |
| 381LX104M016A082 | Cornell Dubilier Electronics (CDE) | CAP ALUM 100000UF 20% 16V SNAP | 88% | View |
| ESMH6R3VSN104MA45S | United Chemi-Con | CAP ALUM 100000UF 20% 6.3V SNAP | 68% | View |
| 381LQ104M010A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 100000UF 20% 10V SNAP | 67% | View |
Submit your RFQ for 380LQ104M016A052 and get a quote within 24 hours.
