Cornell Dubilier Electronics (CDE)

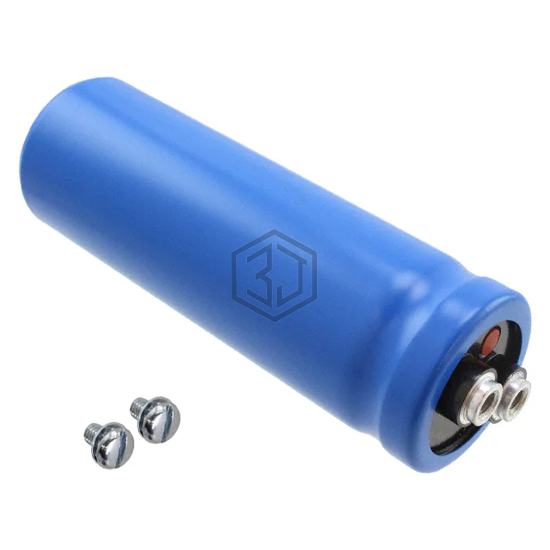

CAP ALUM 12000UF 63V SCREW
3186BE123T063APA1 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 12000UF 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 21mOhm |
| Lifetime @ Temp. | 1500 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.4 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D630HPN123MC48M | United Chemi-Con | CAP ALUM 12000UF 20% 63V SCREW | 82% | View |
| E36D630HPN123MA67M | United Chemi-Con | CAP ALUM 12000UF 20% 63V SCREW | 81% | View |
| CGO123M020L | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 20V SCREW | 75% | View |
| E36D161MLS123TDB7U | United Chemi-Con | CAP ALUM 12000UF 160V SCREW | 56% | View |
| 500C123M450FG2H | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 450V SCREW | 56% | View |
| CGS123U040V2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 40V SCREW | 55% | View |
Submit your RFQ for 3186BE123T063APA1 and get a quote within 24 hours.
