Cornell Dubilier Electronics (CDE)

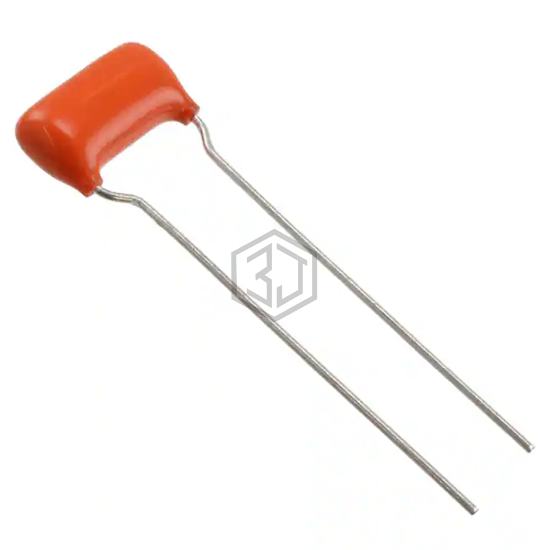

CAP FILM 3900PF 10% 100VDC RAD
225P39291WD3 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 3900PF 10% 100VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating - dc 100V, package / case Radial.
In Stock: 4,920
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 70V |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.700" L x 0.252" W (17.78mm x 6.40mm) |
| Height - Seated (Max) | 0.350" (8.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.375" (9.52mm) |
| Applications | Audio; DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PHE450MA4390JR05 | KEMET | CAP FILM 3900PF 5% 630VDC RADIAL | 58% | View |
| R76UI139050H4J | KEMET | CAP FILM 3900PF 5% 2KVDC RAD | 56% | View |
| BFC237523392 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 3.5% 1KVDC RAD | 56% | View |
| MKP385239125JDI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 1.25KVDC RAD | 56% | View |
| BFC238560392 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 2KVDC RADIAL | 56% | View |
| MKP385239200JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 2KVDC RADIAL | 56% | View |
Submit your RFQ for 225P39291WD3 and get a quote within 24 hours.
