Cornell Dubilier Electronics (CDE)

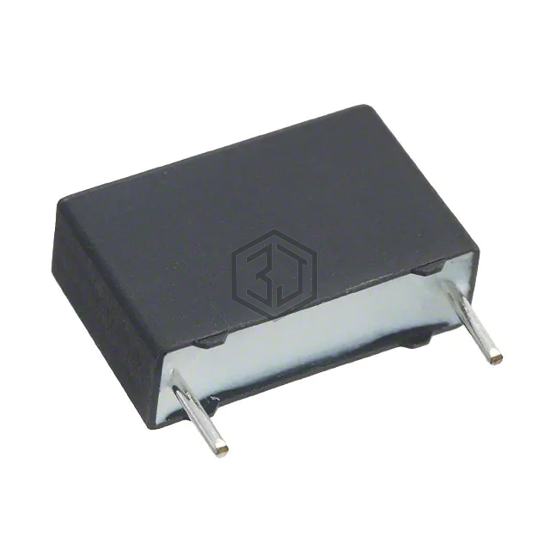

CAP FILM 0.022UF 10% 1KVDC RAD
160223K1000G-F is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 0.022UF 10% 1KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 4,070
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.022 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.236" W (18.00mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC233820223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 20% 630VDC RAD | 91% | View |
| BFC236857223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 400VDC RAD | 86% | View |
| MKP385322040JBI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 400VDC RAD | 84% | View |
| R73UR2220SE00J | KEMET | CAP FILM 0.022UF 5% 2KVDC RADIAL | 81% | View |
| BFC2370FH223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 10% 400VDC RAD | 81% | View |
| PPB2202220KGS | Nichicon | FILM CAP BOXED RADIAL | 76% | View |
Submit your RFQ for 160223K1000G-F and get a quote within 24 hours.
