Cornell Dubilier Electronics (CDE)

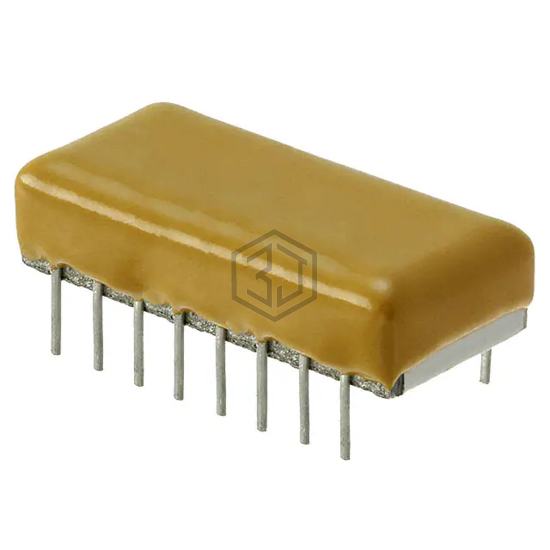

CAP NETWORK 1UF 500V 16DIP
105K500CS6 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP NETWORK 1UF 500V 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating - dc 500V, package / case 16-DIP.
In Stock: 8,583
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 500V |
| Dielectric Material | Polymer, Metallized |
| ESR (Equivalent Series Resistance) | 8 mOhms |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP |
| Size / Dimension | 1.134" L x 0.701" W (28.80mm x 17.80mm) |
| Height - Seated (Max) | 0.319" (8.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - |
| Features | Low ESR, Low ESL |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKS4G041006B00MSSD | WIMA | CAP FILM 1UF 20% 400VDC RAD | 96% | View |
| MMP4W1K | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 400VDC AXIAL | 96% | View |
| B32562J3105K189 | EPCOS - TDK Electronics | CAP FILM 1UF 10% 250VDC 2DIP | 88% | View |
| 105MSR250K | Cornell Dubilier / Illinois Capacitor | CAP FILM 1UF 10% 250VDC RADIAL | 88% | View |
| B32563J3105J000 | EPCOS - TDK Electronics | CAP FILM 1UF 5% 250VDC 2DIP | 88% | View |
| MMWA05W1M-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 20% 50VDC AXIAL | 71% | View |
Submit your RFQ for 105K500CS6 and get a quote within 24 hours.
