Cornell Dubilier / Illinois Capacitor

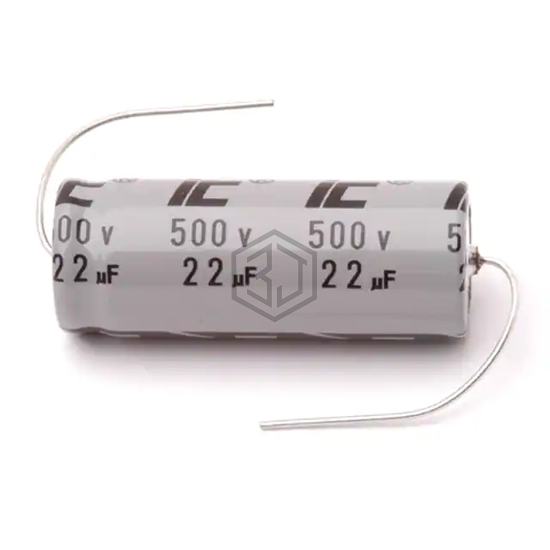

CAP ALUM 22UF 20% 500V AXIAL
C-ET22-500-IL is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 500V AXIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Axial, Can.
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 18.8394Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 175.95 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia x 1.260" L (16.00mm x 32.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
Submit your RFQ for C-ET22-500-IL and get a quote within 24 hours.
