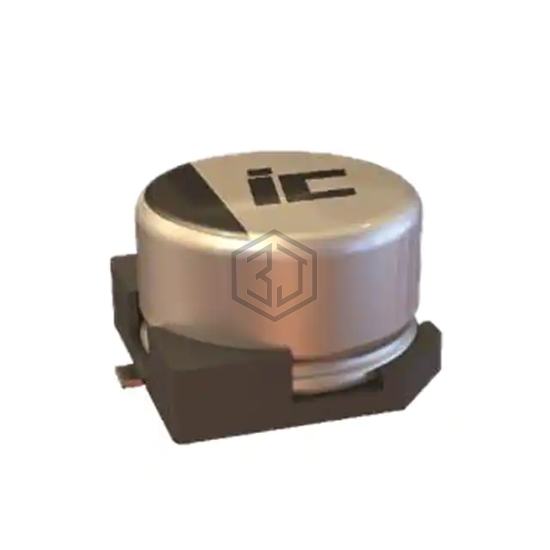

Cornell Dubilier / Illinois Capacitor
CAP ALUM 47UF 20% 6.3V SMD
ATB476M6R3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 6,675
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 3.39Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 112 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.209" L x 0.228" W (5.30mm x 5.80mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK0J470AR | Panasonic Electronic Components | CAP ALUM 47UF 20% 6.3V SMD | 90% | View |
| 865060243003 | Würth Elektronik | CAP ALUM 47UF 20% 10V SMD | 71% | View |
| EMZR350ARA470ME61G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 66% | View |
| 16TZV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 65% | View |
| AVEZ476M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 25V SMD | 65% | View |
| UCL1E470MCL1GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 59% | View |
Submit your RFQ for ATB476M6R3 and get a quote within 24 hours.
