Cornell Dubilier / Illinois Capacitor
CAP ALUM 330UF 20% 6.3V SMD

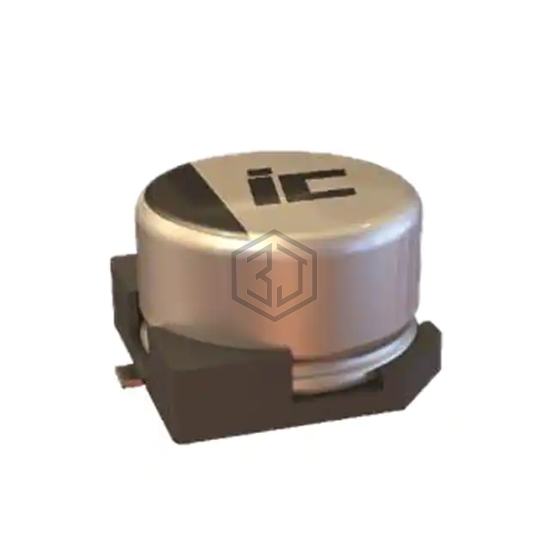

ATB337M6R3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 330UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,620
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 480mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.339" W (8.30mm x 8.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UT337M6V3HFKTA | Aillen | CAP. ALUM 330UF 6.3V 20% SMD | 88% | View |
| VZT331M1ATR-0607S | Surge | CAP ALUM 10V POLAR | 83% | View |
| VEJ331M0JTR-0810S | Surge | CAP ALUM 6.3V POLAR | 82% | View |
| UCQ1V331MCL1GS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 78% | View |
| ATB337M016 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V SMD | 78% | View |
| 16JZV330M8X10.5 | Rubycon | CAP ALUM 330UF 20% 16V SMD | 75% | View |
Submit your RFQ for ATB337M6R3 and get a quote within 24 hours.
