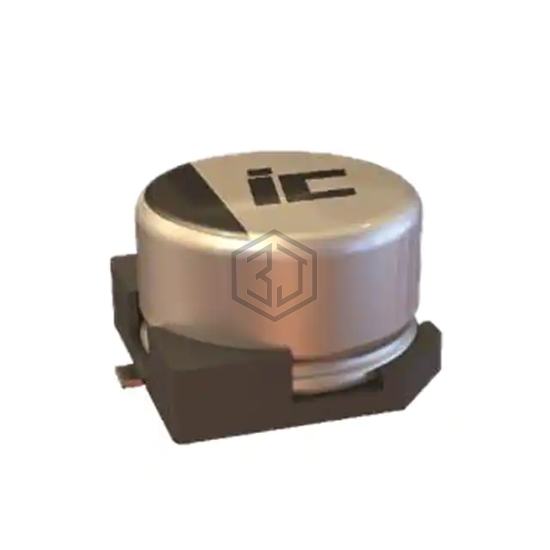

Cornell Dubilier / Illinois Capacitor
CAP ALUM 33UF 20% 50V SMD
ATB336M050 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,129
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 4.82Ohm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 245 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | 520 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.339" W (8.30mm x 8.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUA1H330MNL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 74% | View |
| EEE-FK1V330GP | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V SMD | 72% | View |
| 865080645010 | Würth Elektronik | CAP ALUM 33UF 20% 50V SMD | 69% | View |
| UWD1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 64% | View |
| EEE-FN1H330L | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 62% | View |
| MAL214699013E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 35V SMD | 60% | View |
Submit your RFQ for ATB336M050 and get a quote within 24 hours.
