Cornell Dubilier / Illinois Capacitor

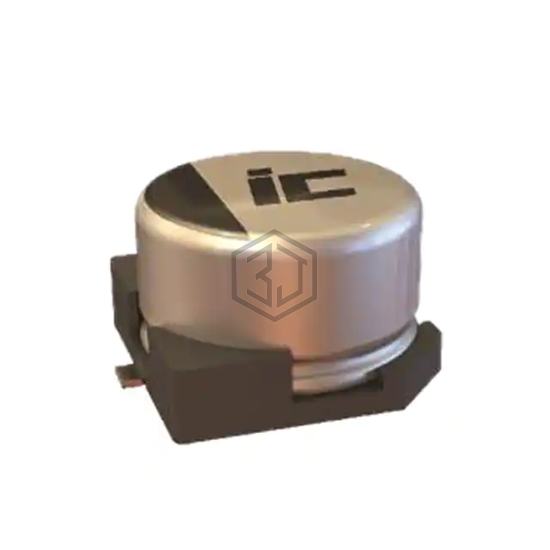

CAP ALUM 220UF 20% 35V SMD
ATB227M035 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 220UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,126
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 840mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 595 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.417" W (10.30mm x 10.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35JGV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 91% | View |
| UCQ1V221MCL1GS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 82% | View |
| UWD1H221MCL1GS | Nichicon | CAP ALUM 220UF 20% 50V SMD | 72% | View |
| AFK227M2AR44VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 100V SMD | 72% | View |
| 865080453013 | Würth Elektronik | CAP ALUM 220UF 20% 25V SMD | 66% | View |
| UCM2A221MNJ1MS | Nichicon | CAP ALUM 220UF 20% 100V SMD | 58% | View |
Submit your RFQ for ATB227M035 and get a quote within 24 hours.
