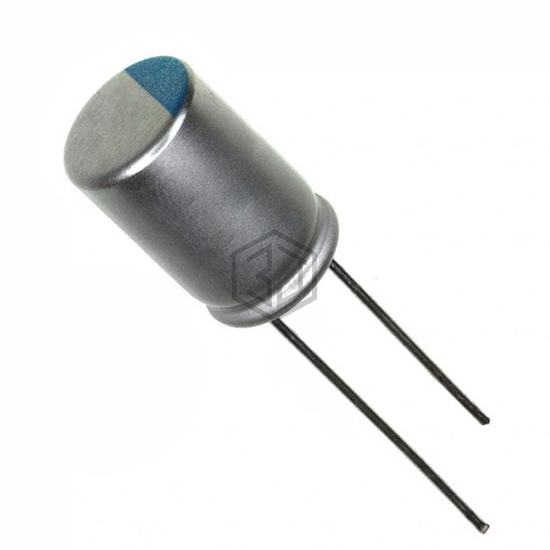

Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 820UF 20% 16V T/H
827ALG016MFBJ is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 820UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1500 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 255 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URH1C821MNN0812U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 97% | View |
| A759KS827M1AAAE013 | KEMET | CAP ALUM POLY 820UF 20% 10V TH | 85% | View |
| URH1D821MP51016U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 83% | View |
| 6SEQP820M | Panasonic Electronic Components | CAP ALUM POLY 820UF 20% 6.3V T/H | 76% | View |
| 870135174005 | Würth Elektronik | CAP ALUM POLY 820UF 20% 6.3V T/H | 70% | View |
| URH0J821MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 69% | View |
