Cornell Dubilier / Illinois Capacitor

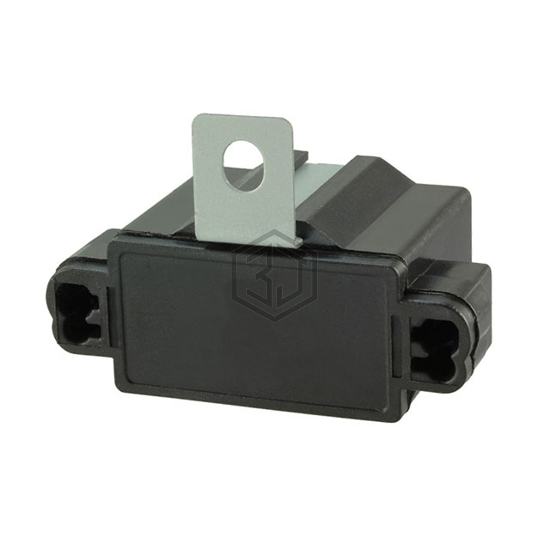

CAP FILM 8UF 10% 250VAC CHAS MT
805QPC250KB8A5CL is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 8UF 10% 250VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C, voltage rating - ac 250V, package / case Rectangular Box.
In Stock: 9,530
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.811" L x 0.512" W (46.00mm x 13.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | Screwless - Push-In Spring |
| Lead Spacing | - |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
805QPC250KB8A5CL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEC2H805HQA416 | Nichicon | CAP FILM | 100% | View |
| PMB1704800KSL | Nichicon | FILM CAP BOXED LUGS | 91% | View |
| PMB1704800KBP | Nichicon | FILM CAP BOXED LUGS | 91% | View |
| PMB1704800KVR | Nichicon | FILM CAP BOXED LUGS | 91% | View |
| MKP386M580085YT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8UF 5% 850VDC SCREW | 90% | View |
| MKP386M580085YT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8UF 5% 850VDC SCREW | 90% | View |
Submit your RFQ for 805QPC250KB8A5CL and get a quote within 24 hours.
