Cornell Dubilier / Illinois Capacitor
CAP ALUM 6800UF 20% 80V SNAP

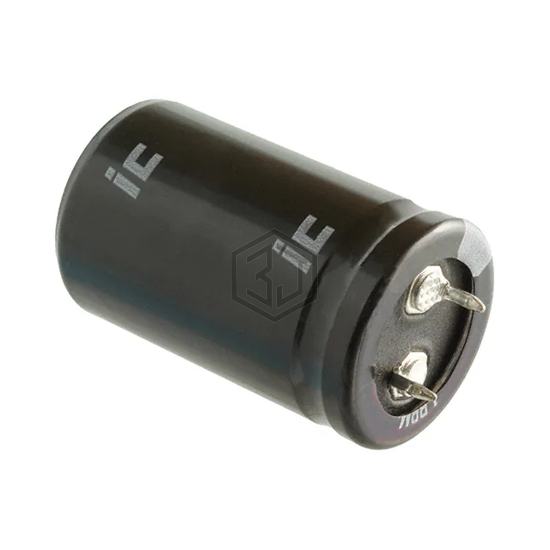

688LBB080M2EF is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 6800UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 9,797
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 36.57mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.425 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ682M080A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 80V SNAP | 98% | View |
| 861220786020 | Würth Elektronik | CAP ALUM 6800UF 20% 63V SNAP | 86% | View |
| EKMH800VND682MA50U | United Chemi-Con | CAP ALUM 6800UF 20% 80V SNAP | 86% | View |
| MAL225658682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 63V SNAP | 74% | View |
| ECO-S1JA682EA | Panasonic Electronic Components | CAP ALUM 6800UF 20% 63V SNAP | 74% | View |
| SLPX682M035A7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 35V SNAP | 53% | View |
Submit your RFQ for 688LBB080M2EF and get a quote within 24 hours.
