Cornell Dubilier / Illinois Capacitor

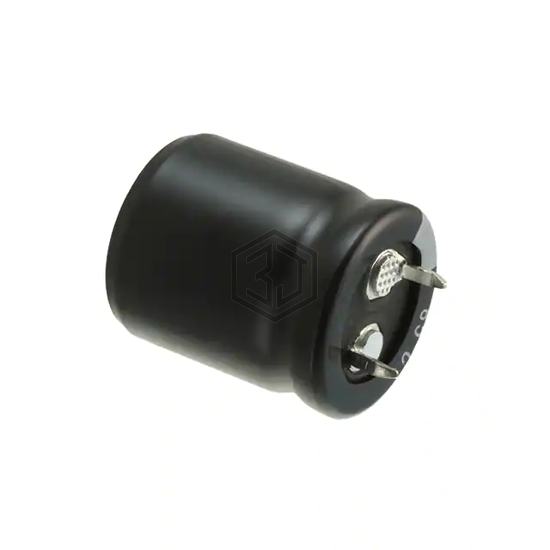

CAP ALUM 6800UF 20% 25V SNAP
688LBB025M2BD is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 6800UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 5,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 73.14mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP682M016A1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 16V SNAP | 82% | View |
| 16PK6800MEFC16X25 | Rubycon | CAP ALUM 6800UF 20% 16V RADIAL | 81% | View |
| MAL205675682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V SNAP | 80% | View |
| LKG1V682MESCCK | Nichicon | CAP ALUM 6800UF 20% 35V SNAP | 68% | View |
| EKMH630VSN682MR50U | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 60% | View |
| B41505A3688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 10V SNAP | 54% | View |
Submit your RFQ for 688LBB025M2BD and get a quote within 24 hours.
