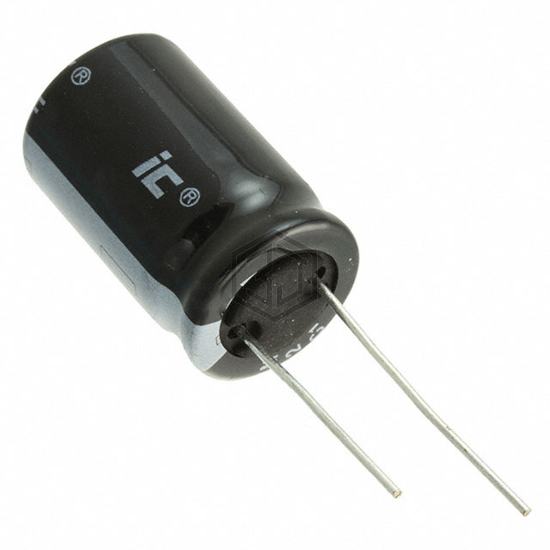

Cornell Dubilier / Illinois Capacitor
CAP ALUM 6800UF 20% 16V RADIAL
688CKS016MQV is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,483
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 68mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.15 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL204855682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 91% | View |
| LLS1V682MELA | Nichicon | CAP ALUM 6800UF 20% 35V SNAP | 72% | View |
| EKMH500VSN682MQ50U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 67% | View |
| SK682M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 6.3V RADIAL | 65% | View |
| 63MXG6800MEFCSN25X45 | Rubycon | CAP ALUM 6800UF 20% 63V SNAP | 60% | View |
| EKMH630VSN682MR50S | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 59% | View |
Submit your RFQ for 688CKS016MQV and get a quote within 24 hours.
