Cornell Dubilier / Illinois Capacitor
CAP ALUM 68UF 20% 400V SNAP

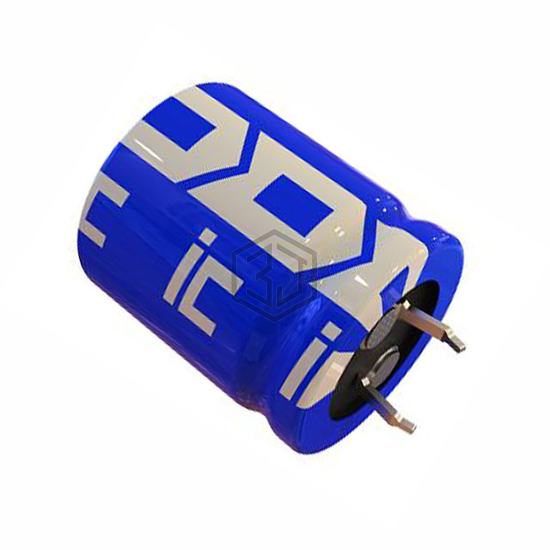

686LMU400M2BC is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 68UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,684
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 3.657053Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 749.7 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
686LMU400M2BC is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXW68MEFR14.5X30 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 81% | View |
| EKXJ351ELL680MM20S | United Chemi-Con | CAP ALUM 68UF 20% 350V RADIAL | 80% | View |
| EKXJ421ELL680MLN3S | United Chemi-Con | CAP ALUM 68UF 20% 420V RADIAL | 75% | View |
| 500LXW68MEFR14.5X50 | Rubycon | CAP ALUM 68UF 20% 500V RADIAL | 69% | View |
| UBX1K680MPL | Nichicon | CAP ALUM 68UF 20% 80V RADIAL | 68% | View |
| B41866C8686M000 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for 686LMU400M2BC and get a quote within 24 hours.
