Cornell Dubilier / Illinois Capacitor
CAP FILM 0.68UF 1KVDC CHAS MT

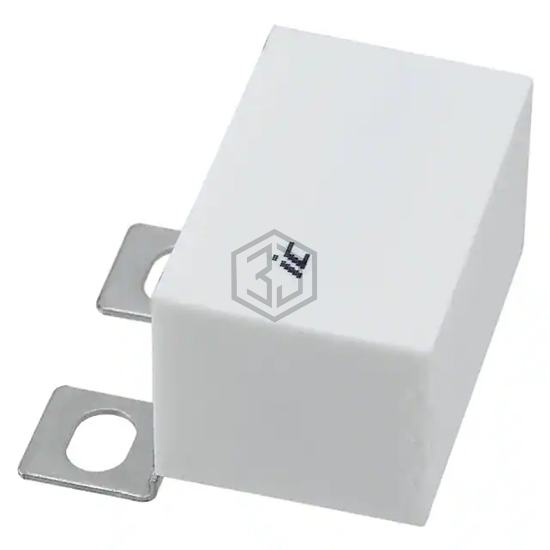

684PMB102KBP2 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.68UF 1KVDC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1000V (1kV), package / case Rectangular Box.
In Stock: 8,837
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 575V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.3 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.673" L x 0.965" W (42.50mm x 24.50mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
| Termination | - |
| Lead Spacing | - |
| Applications | DC Link, DC Filtering; High Frequency, Switching; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SCD684K102D3Z25-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.68UF 10% 1KVDC SCREW | 98% | View |
| B32656S0684K565 | EPCOS - TDK Electronics | CAP FILM 0.68UF 10% 1KVDC SCREW | 98% | View |
| B32656S0684K563 | EPCOS - TDK Electronics | CAP FILM 0.68UF 10% 1KVDC SCREW | 98% | View |
| PMB1853680KSP | Nichicon | FILM CAP BOXED LUGS | 96% | View |
| BFC238683684 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.25KVDC SCRW | 93% | View |
| MKP386M468160JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.6KVDC SCREW | 93% | View |
Submit your RFQ for 684PMB102KBP2 and get a quote within 24 hours.
