Cornell Dubilier / Illinois Capacitor
CAP ALUM 560UF 20% 200V SNAP

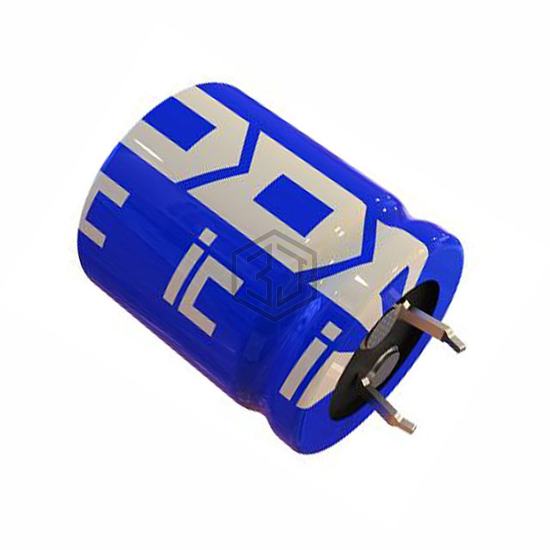

567LMX200M2BG is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,758
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 444.1mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.75 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5725 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LDQ2D561MERYGA | Nichicon | CAP ALUM 560UF 20% 200V RADIAL | 96% | View |
| B43254G2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 92% | View |
| B43504A2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 90% | View |
| LAR2G561MELB50 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 73% | View |
| 420VXH560MEFC35X40 | Rubycon | CAP ALUM 560UF 20% 420V SNAP | 72% | View |
| B43641B9567M050 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 68% | View |
