Cornell Dubilier / Illinois Capacitor

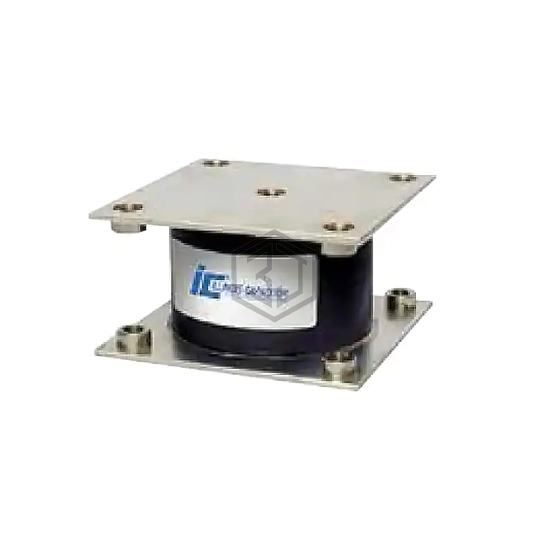

CAP FILM 5.6UF 700VAC CHAS MT
565LC5700K5PM8 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 5.6UF 700VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 700V, package / case Nonstandard.
In Stock: 3,934
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5.6 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.9 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 3.937" L x 3.937" W (100.00mm x 100.00mm) |
| Height - Seated (Max) | 2.146" (54.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 565HC5700KR | Cornell Dubilier / Illinois Capacitor | CAP FILM 5.6UF 10% 700VAC AXIAL | 100% | View |
| PMB1854560KFR | Nichicon | FILM CAP BOXED LUGS | 94% | View |
| PMB1854560KAP | Nichicon | FILM CAP BOXED LUGS | 94% | View |
| PMB1854560KBP | Nichicon | FILM CAP BOXED LUGS | 94% | View |
| PMB1854560KSP | Nichicon | FILM CAP BOXED LUGS | 94% | View |
| PMB1854560KVR | Nichicon | FILM CAP BOXED LUGS | 94% | View |
Submit your RFQ for 565LC5700K5PM8 and get a quote within 24 hours.
