Cornell Dubilier / Illinois Capacitor

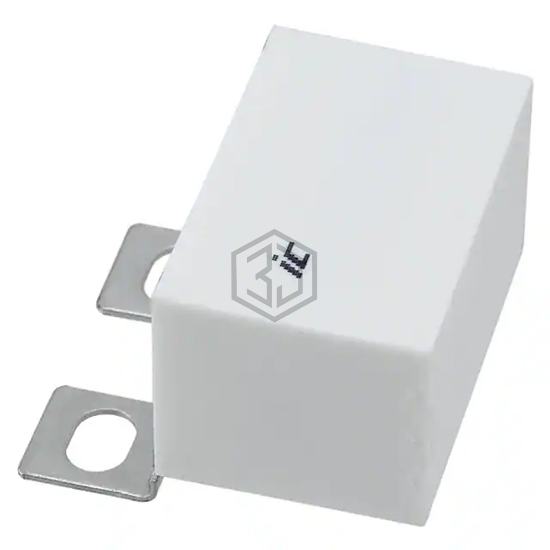

CAP FILM 0.56UF 1.2KVDC CHAS MT
564PMB122KSP2 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.56UF 1.2KVDC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Rectangular Box.
In Stock: 9,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.56 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 630V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.7 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.673" L x 0.965" W (42.50mm x 24.50mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
| Termination | Screw Terminals |
| Lead Spacing | - |
| Applications | DC Link, DC Filtering; High Frequency, Switching; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M456160JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 1.6KVDC SCREW | 95% | View |
| MKP386M456160JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 1.6KVDC SCREW | 95% | View |
| BFC238650564 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 10% 1.6KVDC SCRW | 94% | View |
| MKP386M456200JT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 2KVDC SCREW | 91% | View |
| MKP386M456200JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 2KVDC SCREW | 91% | View |
| PMB2203560KVRA | Nichicon | FILM CAP BOXED LUGS | 91% | View |
Submit your RFQ for 564PMB122KSP2 and get a quote within 24 hours.
