Cornell Dubilier / Illinois Capacitor

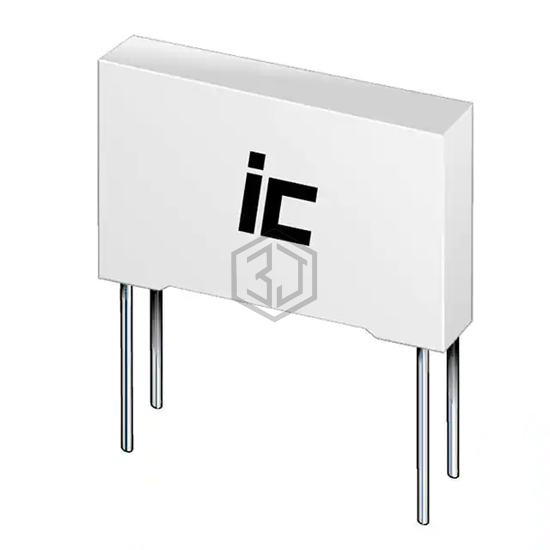

CAP FILM 5UF 10% 700VDC RADIAL
505PHB700K4J is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 5UF 10% 700VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - dc 700V, package / case Radial - 4 Leads.
In Stock: 1,273
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 700V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.3 mOhms |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.673" L x 1.181" W (42.50mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALH505K401B064 | Cornell Dubilier Electronics (CDE) | 5UF 400VAC 42.5X37X28MM LS=37.5 | 100% | View |
| MKP1848SE55090JP4B | Vishay Roederstein | 5F 5% TOLERANCE 900VDC PITCH: 37 | 96% | View |
| BLH505K102A072 | Cornell Dubilier Electronics (CDE) | DC LINK, THB, 85/85, AEC-Q200 | 94% | View |
| MKP1848S55010JP4C | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 1KVDC RADIAL | 94% | View |
| B32756C7505J000 | EPCOS - TDK Electronics | CAP FILM 5UF 5% 550VDC RADIAL | 92% | View |
| B32774X1505K000 | EPCOS - TDK Electronics | CAP FILM 5UF 10% 1.2KVDC RADIAL | 90% | View |
Submit your RFQ for 505PHB700K4J and get a quote within 24 hours.
