Cornell Dubilier / Illinois Capacitor

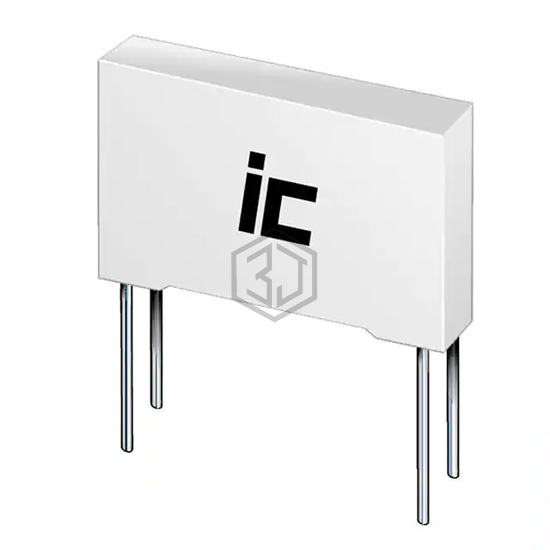

CAP FILM 5UF 10% 250VDC RADIAL
505PHB250K4H is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 5UF 10% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - dc 250V, package / case Radial - 4 Leads.
In Stock: 1,155
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 160V |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.7 mOhms |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.260" L x 0.551" W (32.00mm x 14.00mm) |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 935C2W5K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 5UF 10% 200VDC AXIAL | 95% | View |
| MKP1848S55050JK2A | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 500VDC RADIAL | 88% | View |
| B32756C2505K000 | EPCOS - TDK Electronics | CAP FILM 5UF 10% 500VDC RADIAL | 84% | View |
| 505K100RA4-FA | Paktron | CAPACITOR MLP 5.0UF 100V RADIAL | 78% | View |
| B32774D0505K000 | EPCOS - TDK Electronics | CAP FILM 5UF 10% 1.1KVDC RADIAL | 74% | View |
| C4AQQBU4500A11J | KEMET | CAP FILM 5UF 5% 1.1KVDC RADIAL | 74% | View |
