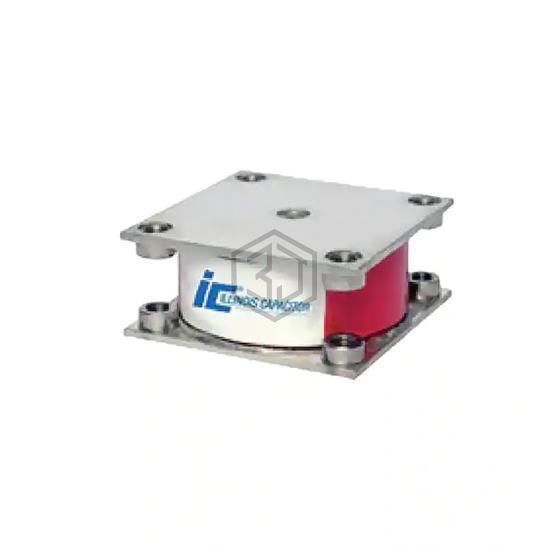

Cornell Dubilier / Illinois Capacitor
CAP FILM 5UF 10% 500VAC CHAS MT
505LC4500K5LM8 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 5UF 10% 500VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 500V, package / case Nonstandard.
In Stock: 5,550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.1 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
| Height - Seated (Max) | 1.358" (34.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M550100YT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 1KVDC SCREW | 100% | View |
| 505HC6500K2EM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 5UF 10% 500VAC CHAS MT | 100% | View |
| MKP386M550100YT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 1KVDC SCREW | 100% | View |
| PMB1854500KVP | Nichicon | FILM CAP BOXED LUGS | 100% | View |
| C4BSMBX4500ZBNJ | KEMET | CAP FILM 5UF 5% 850VDC SCREW | 98% | View |
| MKP386M550125YT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 1.25KVDC SCREW | 98% | View |
Submit your RFQ for 505LC4500K5LM8 and get a quote within 24 hours.
