Cornell Dubilier / Illinois Capacitor
CAP FILM 5UF 10% 400VAC SMD

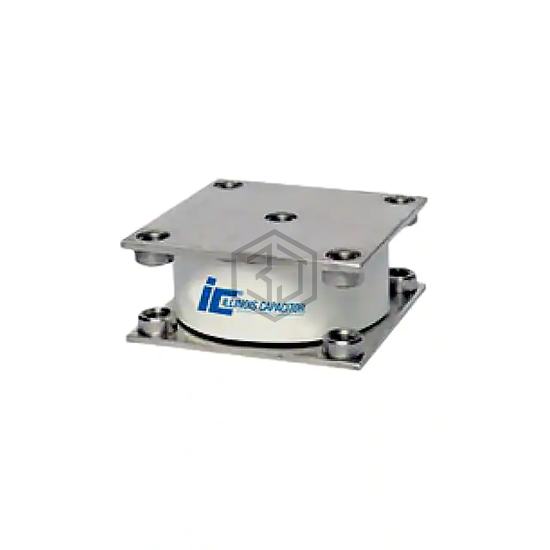

505LC3400K5LM8 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 5UF 10% 400VAC SMD. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 400V, package / case Nonstandard.
In Stock: 8,202
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.1 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
| Height - Seated (Max) | 1.358" (34.50mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
Submit your RFQ for 505LC3400K5LM8 and get a quote within 24 hours.
