Cornell Dubilier / Illinois Capacitor

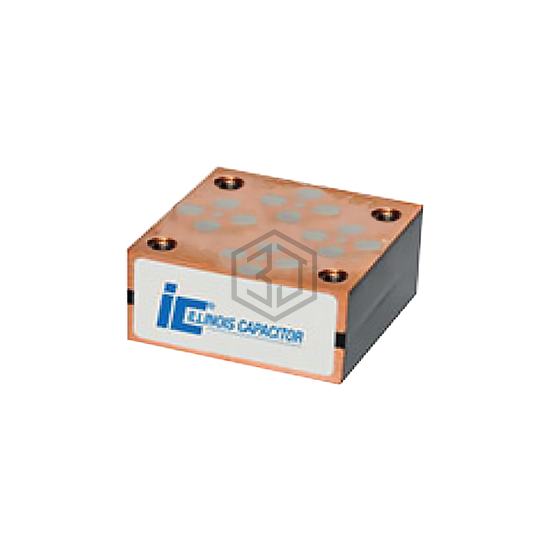

CAP FILM 5UF 10% 400VAC CHAS MT
505HC3400K4VM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 5UF 10% 400VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 400V, package / case Nonstandard.
In Stock: 7,705
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.1 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.953" L x 1.969" W (75.00mm x 50.00mm) |
| Height - Seated (Max) | 1.193" (30.30mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M550070JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 700VDC SCREW | 99% | View |
| MKP386M550085YT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 850VDC SCREW | 98% | View |
| MKP386M550085YT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 850VDC SCREW | 98% | View |
| MKP386M550085YT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 850VDC SCREW | 98% | View |
| MKP386M550100YT5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 1KVDC SCREW | 96% | View |
| 505HC4500K4TM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 5UF 10% 500VAC CHAS MT | 96% | View |
