Cornell Dubilier / Illinois Capacitor
CAP FILM 0.5UF 10% 1KVAC CHAS MT

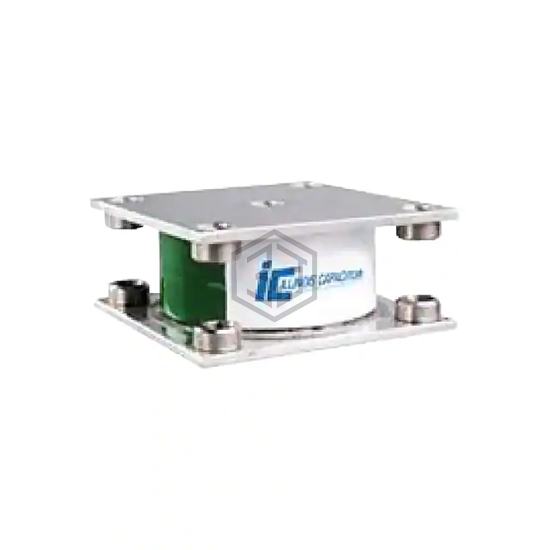

504LC6102K5PM8 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.5UF 10% 1KVAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 1000V (1kV), package / case Nonstandard.
In Stock: 4,482
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 1000V (1kV) |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.9 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 3.937" L x 3.937" W (100.00mm x 100.00mm) |
| Height - Seated (Max) | 2.146" (54.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F491GE504J2K0A | KEMET | CAP FILM 0.5UF 5% 2KVDC AXIAL | 100% | View |
| 504HC2800K2CM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 800VAC CHAS MT | 96% | View |
| 504HC6800K2EM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 800VAC CHAS MT | 96% | View |
| 504HC3A800K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 10% 800VAC CHASS | 96% | View |
| 504HC4700K2UM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 700VAC CHAS MT | 94% | View |
| 504HC1700K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 10% 700VAC CHASS | 94% | View |
Submit your RFQ for 504LC6102K5PM8 and get a quote within 24 hours.
