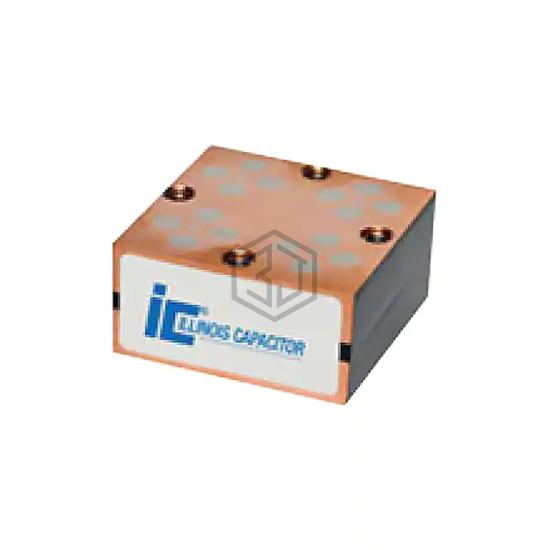

Cornell Dubilier / Illinois Capacitor
CAP FILM 0.5UF 800VAC CHAS MT
504HC6800K4TM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.5UF 800VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 800V, package / case Nonstandard.
In Stock: 2,906
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 800V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.9 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.362" L x 2.362" W (60.00mm x 60.00mm) |
| Height - Seated (Max) | 1.193" (30.30mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 504HC6800K2EM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 800VAC CHAS MT | 100% | View |
| 504HC2800K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 10% 800VAC CHASS | 100% | View |
| 504HC3A800K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 10% 800VAC CHASS | 100% | View |
| 504HC4700K2UM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 700VAC CHAS MT | 98% | View |
| 504HC1700K2CM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 700VAC CHAS MT | 98% | View |
| 504HC1700K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.5UF 10% 700VAC CHASS | 98% | View |
Submit your RFQ for 504HC6800K4TM6 and get a quote within 24 hours.
