Cornell Dubilier / Illinois Capacitor
CAP ALUM 4700UF 20% 16V RADIAL

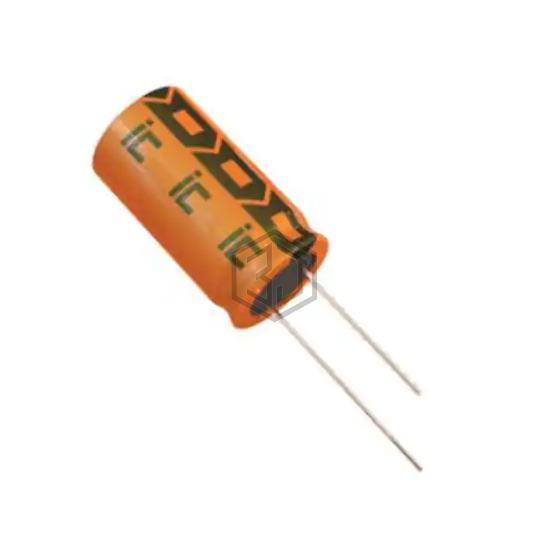

478KBM016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 4700UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,572
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 85mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.482 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.92 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THAS492M025AB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 4900UF 20% 25V FLATPACK | 83% | View |
| 10ZL4700MEFC12.5X35 | Rubycon | CAP ALUM 4700UF 20% 10V RADIAL | 80% | View |
| 50VXG4700MEFCSN30X30 | Rubycon | CAP ALUM 4700UF 20% 50V SNAP | 73% | View |
| ELBG350EC3482AMN3S | United Chemi-Con | CAP ALUM 4800UF 35V RADIAL | 71% | View |
| THAS482M040AD1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 4800UF 20% 40V FLATPACK | 67% | View |
| THAS482M040AD0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 4800UF 20% 40V FLATPACK | 67% | View |
