Cornell Dubilier / Illinois Capacitor

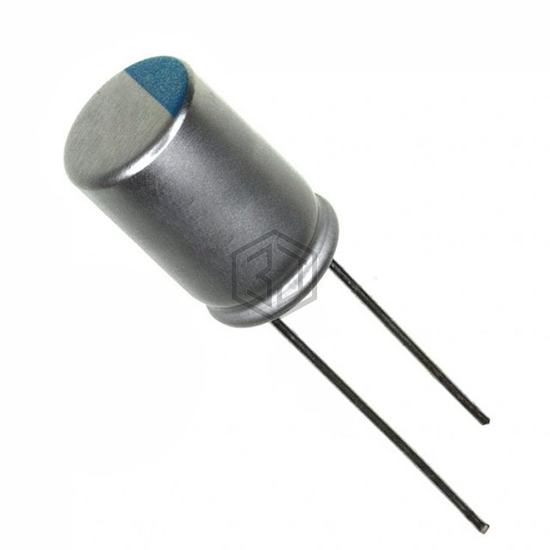

CAP ALUM POLY 470UF 20% 25V T/H
477ALG025MFBJ is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 470UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,541
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 1500 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 237.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.75 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URH1E471MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 100% | View |
| 477AVG025MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 470UF 20% 25V T/H | 95% | View |
| 477AVG016MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 470UF 20% 16V T/H | 82% | View |
| A759EK477M0JAAE016 | KEMET | CAP ALUM POLY 470UF 20% 6.3V TH | 72% | View |
| PLX1C391MDL1 | Nichicon | CAP ALUM POLY 390UF 20% 16V T/H | 56% | View |
| RHT1A391MDN1KX | Nichicon | CAP ALUM POLY 390UF 20% 10V T/H | 55% | View |
Submit your RFQ for 477ALG025MFBJ and get a quote within 24 hours.
