Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 47UF 20% 35V T/H

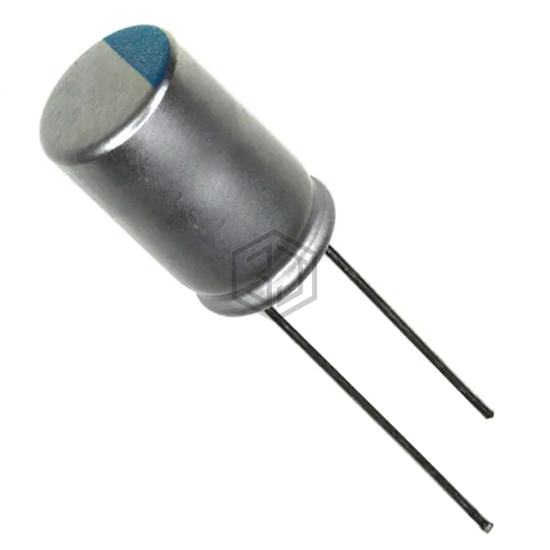

476ULG035MFF is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 47UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,949
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 90mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 141 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.82 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870055674005 | Würth Elektronik | CAP ALUM POLY 47UF 20% 35V T/H | 99% | View |
| 476ALG050MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 47UF 20% 50V T/H | 87% | View |
| A755KS476M1EAAE025 | KEMET | CAP ALUM POLY 47UF 20% 25V T/HL | 80% | View |
| 476ULG025MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 47UF 20% 25V T/H | 72% | View |
| 870135775004 | Würth Elektronik | CAP ALUM POLY 47UF 20% 50V T/H | 71% | View |
| 476ULR020MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 47UF 20% 20V T/H | 69% | View |
Submit your RFQ for 476ULG035MFF and get a quote within 24 hours.
