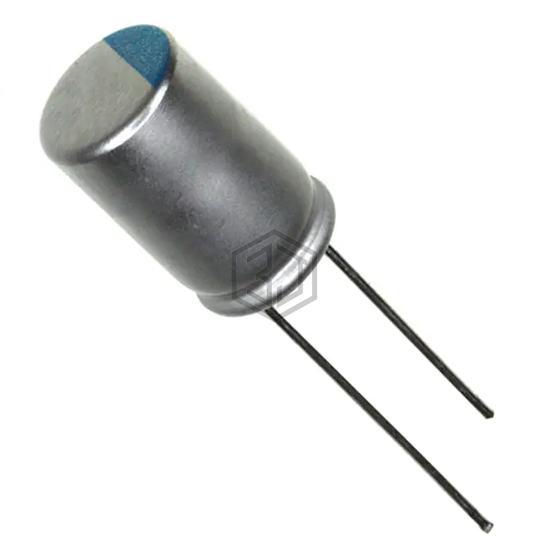

Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 47UF 20% 20V T/H
476ULG020MFF is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 47UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 9,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 42mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 97.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.952 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF1D470MCL2TD | Nichicon | CAP ALUM POLY 47UF 20% 20V T/H | 99% | View |
| PLF1D470MCL2 | Nichicon | CAP ALUM POLY 47UF 20% 20V T/H | 99% | View |
| 476ULG025MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 47UF 20% 25V T/H | 93% | View |
| PLF1E470MDO2TD | Nichicon | CAP ALUM POLY 47UF 20% 25V T/H | 77% | View |
| A759KS476M1KAAE045 | KEMET | CAP ALUM POLY 47UF 20% 80V T/H | 74% | View |
| 870055975004 | Würth Elektronik | CAP ALUM POLY 47UF 20% 100V T/H | 69% | View |
