Cornell Dubilier / Illinois Capacitor

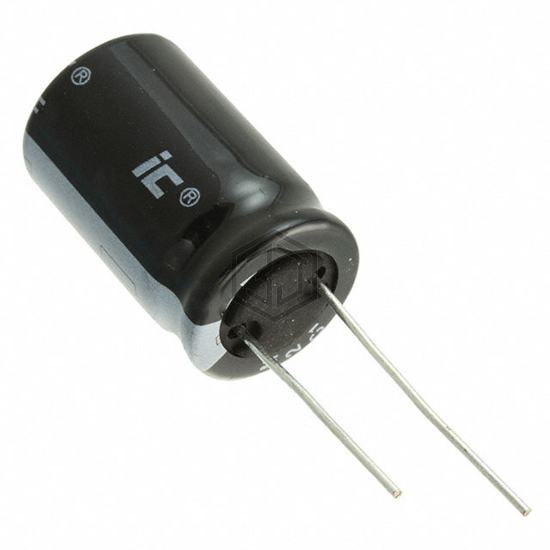

CAP ALUM 47UF 20% 400V RADIAL
476CKS400MQV is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,049
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 7.055Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 702 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504A9476M007 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 400V SNAP | 100% | View |
| 420HXW47MEFR14.5X20 | Rubycon | CAP ALUM 47UF 20% 420V RADIAL | 89% | View |
| TVX2G470MCD | Nichicon | CAP ALUM 47UF 20% 400V AXIAL | 83% | View |
| EKXJ451ELL470ML25S | United Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL | 77% | View |
| 16MS547MEFCTZ5X5 | Rubycon | CAP ALUM 47UF 20% 16V RADIAL | 56% | View |
| UBT1H470MPD | Nichicon | CAP ALUM 47UF 20% 50V RADIAL | 54% | View |
Submit your RFQ for 476CKS400MQV and get a quote within 24 hours.
