Cornell Dubilier / Illinois Capacitor
CAP ALUM 3300UF 20% 80V SNAP

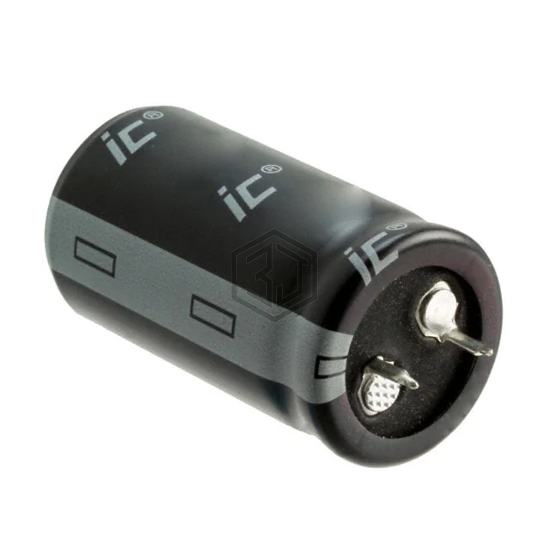

338LBA080M2DD is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 3300UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,466
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 125.6mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.0625 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VSN332MR50T | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 92% | View |
| 80MXG3300MEFCSN35X25 | Rubycon | CAP ALUM 3300UF 20% 80V SNAP | 88% | View |
| EKMH800VNN332MA30T | United Chemi-Con | CAP ALUM 3300UF 20% 80V SNAP | 85% | View |
| ESMH630VSN332MP35S | United Chemi-Con | CAP ALUM 3300UF 20% 63V SNAP | 81% | View |
| LGU1J332MELB | Nichicon | CAP ALUM 3300UF 20% 63V SNAP | 73% | View |
| LGY1H332MELA30 | Nichicon | CAP ALUM 3300UF 20% 50V SNAP | 55% | View |
Submit your RFQ for 338LBA080M2DD and get a quote within 24 hours.
