Cornell Dubilier / Illinois Capacitor

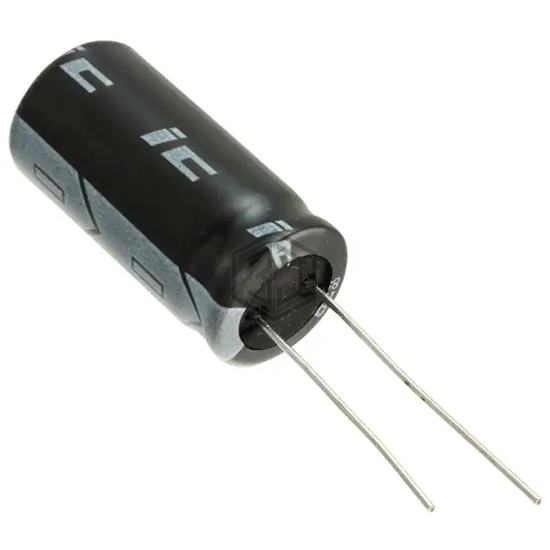

CAP ALUM 3300UF 20% 16V RADIAL
338CKS016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 3300UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,363
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 110.5mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.99 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.786 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZH160ETD332ML20S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 91% | View |
| UPA1A332MHD | Nichicon | CAP ALUM 3300UF 20% 10V RADIAL | 80% | View |
| ECA-1EM332B | Panasonic Electronic Components | CAP ALUM 3300UF 20% 25V RADIAL | 71% | View |
| 10YXJ3300MG412.5X20 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 70% | View |
| MAL212525332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V AXIAL | 66% | View |
| ELXG500VSN332MQ35S | United Chemi-Con | CAP ALUM 3300UF 20% 50V SNAP | 65% | View |
Submit your RFQ for 338CKS016M and get a quote within 24 hours.
