Cornell Dubilier / Illinois Capacitor

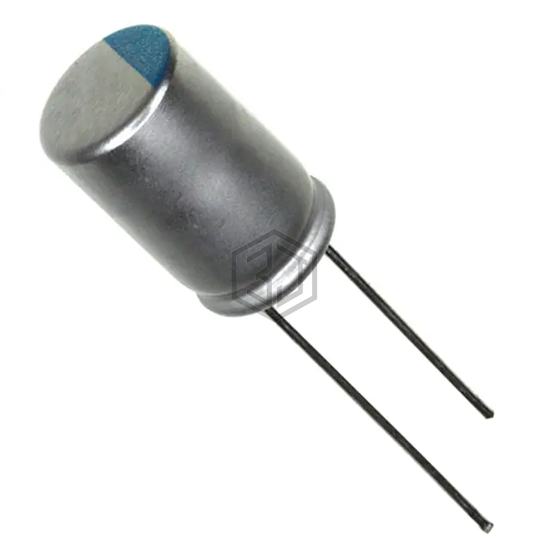

CAP ALUM POLY 330UF 20% 16V T/H
337ULG016MGU is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 330UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,552
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 252.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
