Cornell Dubilier / Illinois Capacitor
CAP ALUM 330UF 20% 100V RADIAL

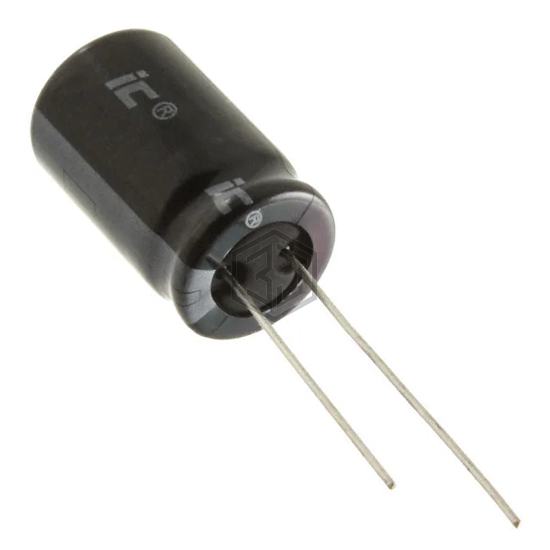

337CKH100M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 330UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 402mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FM1V331LBJ | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V RADIAL | 76% | View |
| LGU2Z331MELZ | Nichicon | CAP ALUM 330UF 20% 180V SNAP | 76% | View |
| LGR2E331MELZ40 | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 73% | View |
| ELXZ630EC3331MK20S | United Chemi-Con | CAP ALUM 330UF 20% 63V RADIAL | 70% | View |
| B43505C9337M67 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 54% | View |
| EGXL250ELL331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 53% | View |
Submit your RFQ for 337CKH100M and get a quote within 24 hours.
