Cornell Dubilier / Illinois Capacitor

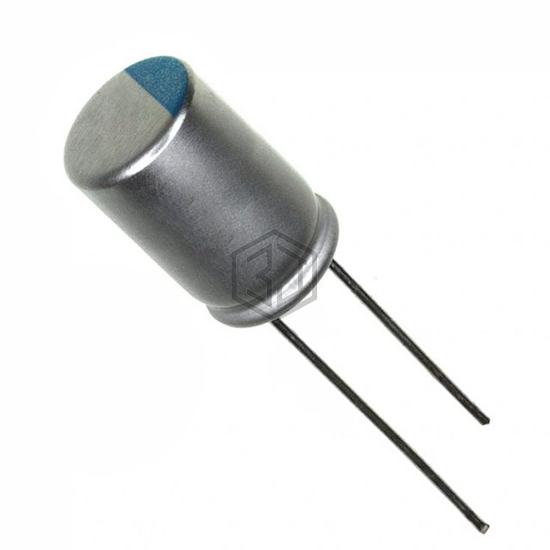

CAP ALUM POLY 330UF 20% 35V T/H
337ALG035MGBJ is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 330UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,774
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 21mOhm |
| Lifetime @ Temp. | 1500 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A759MU337M1VAAE022 | KEMET | CAP ALUM POLY 330UF 20% 35V TH | 98% | View |
| 397AVG035MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 390UF 20% 35V T/H | 87% | View |
| A759PY337M1JAAE042 | KEMET | CAP ALUM POLY 330UF 20% 63V T/H | 81% | View |
| URH1E331MP30811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 75% | View |
| 337AVG016MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 330UF 20% 16V T/H | 74% | View |
| RHT1A331MDN1PX | Nichicon | CAP ALUM POLY 330UF 20% 10V T/H | 62% | View |
Submit your RFQ for 337ALG035MGBJ and get a quote within 24 hours.
