Cornell Dubilier / Illinois Capacitor

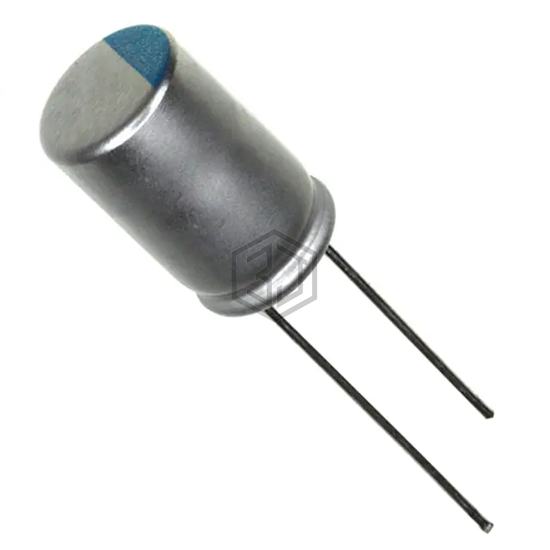

CAP ALUM POLY 33UF 20% 25V T/H
336ULG025MFF is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 33UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,587
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 50mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 93.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.87 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25SEP33M+TSS | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 25V T/H | 78% | View |
| A759KS336M1KAAE055 | KEMET | CAP ALUM POLY 33UF 20% 80V T/H | 78% | View |
| 870055775003 | Würth Elektronik | CAP ALUM POLY 33UF 20% 50V T/H | 76% | View |
| 870055674003 | Würth Elektronik | CAP ALUM POLY 33UF 20% 35V T/H | 76% | View |
| RNS1C330MDS1JT | Nichicon | CAP ALUM POLY 33UF 20% 16V T/H | 69% | View |
| RNS1A330MDS1JT | Nichicon | CAP ALUM POLY 33UF 20% 10V T/H | 62% | View |
Submit your RFQ for 336ULG025MFF and get a quote within 24 hours.
