Cornell Dubilier / Illinois Capacitor
CAP FILM 0.33UF 10% 700VAC SMD

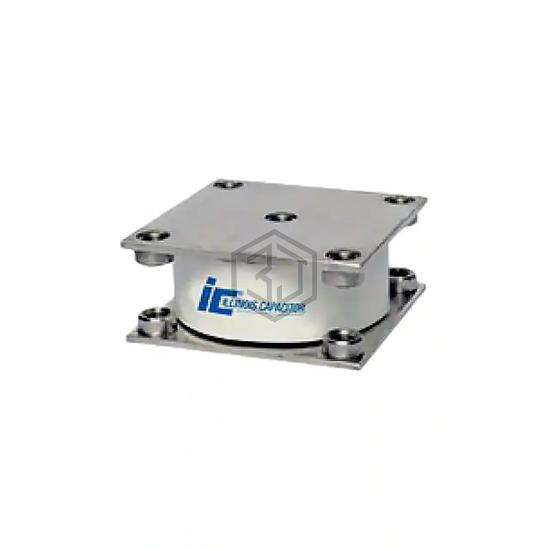

334LC3700KL505HM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.33UF 10% 700VAC SMD. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 700V, package / case Nonstandard.
In Stock: 9,095
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.33 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
| Height - Seated (Max) | 1.339" (34.00mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 334LC2700K5HM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.33UF 700VAC CHAS MT | 100% | View |
| 334LC3700K5LM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.33UF 10% 700VAC SMD | 100% | View |
| PMB2203330KVR | Nichicon | FILM CAP BOXED LUGS | 100% | View |
| C4BSYBX3330ZBLJ | KEMET | CAP FILM 0.33UF 5% 3KVDC SCREW | 99% | View |
| PMB2253330KSP | Nichicon | FILM CAP BOXED LUGS | 99% | View |
| PMB2153330KVRA | Nichicon | FILM CAP BOXED LUGS | 99% | View |
Submit your RFQ for 334LC3700KL505HM6 and get a quote within 24 hours.
