Cornell Dubilier / Illinois Capacitor
CAP FILM 2.6UF 10% 500VAC CHASSI

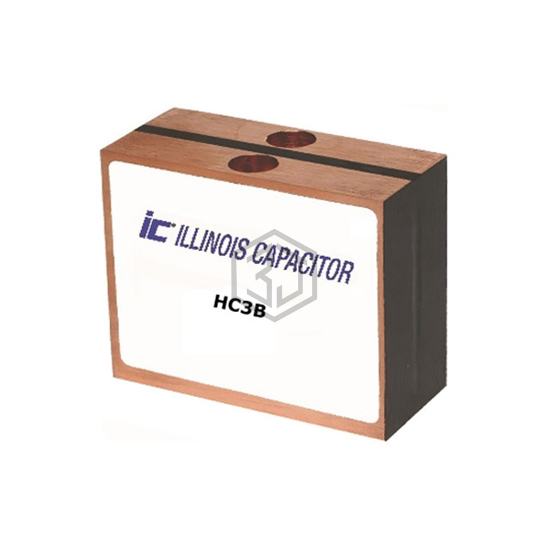

265HC3B500K2SM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 2.6UF 10% 500VAC CHASSI. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 500V, package / case Nonstandard.
In Stock: 4,197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.6 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.2 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.677" L x 1.189" W (68.00mm x 30.20mm) |
| Height - Seated (Max) | 2.402" (61.00mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 265LC3500K5LM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 2.6UF 10% 500VAC SMD | 100% | View |
| 265HC3500K2EM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 2.6UF 500VAC CHAS MT | 100% | View |
| MKP386M527100JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 1KVDC SCREW | 96% | View |
| MKP386M527100JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 1KVDC SCREW | 96% | View |
| 265LC6700K5PM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 2.6UF 700VAC CHAS MT | 94% | View |
| 265HC4700K2EM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 2.6UF 700VAC CHAS MT | 94% | View |
Submit your RFQ for 265HC3B500K2SM6 and get a quote within 24 hours.
